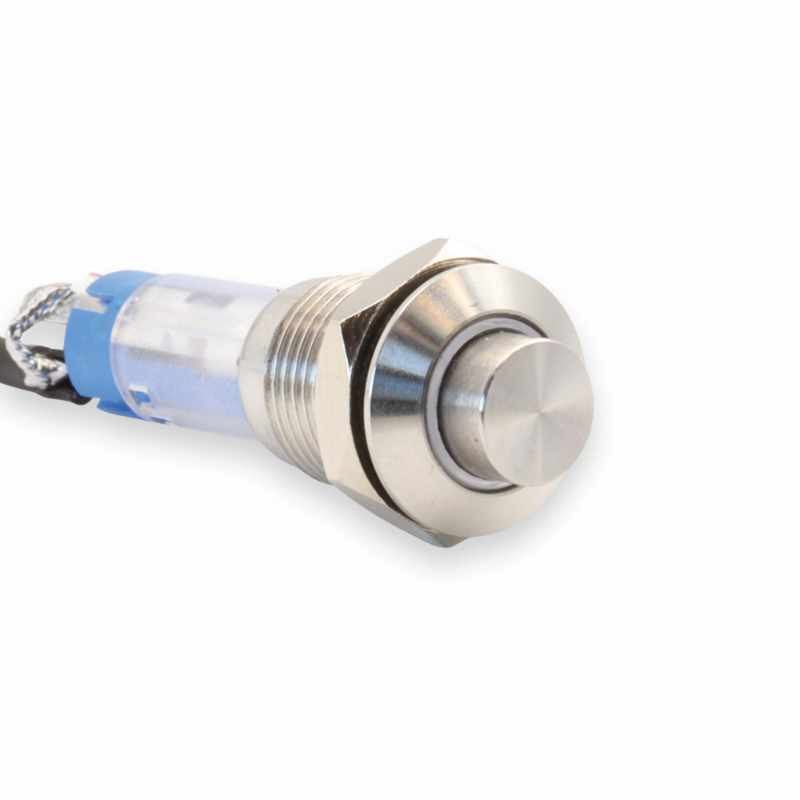

TESI® KILL SWITCH MIMMO 10mm (LED ROUGE) INOX
TESI-MIMMO-SSRD
27,00 €TTC
(prix public conseillé)
Specs:
·Type: Momentary Push Button Switch
·Operation Type: Normally Open (yes, this is correct for instrument kill switch operation. Included instructions show you how to wire it properly!)
·Housing Material: Stainless Steel
·Mounting hole Size: 10mm
·Mounting Panel Thickness: 1mm-6mm
·Mounting Depth: 35mm
·Operation Pressure: about 3n-5n
·Operation Stroke: 2.5mm
·LED Rated Voltage: 6V (includes wires to use with 9V battery and additional resistors in case you want to get creative with the wiring)
*note: This will also function with an 18v active electronics system. Please make a note on your order to make sure you get the right resistors.
·LED Life: About 40,000 hours
·LED Power Draw: 15mA
·Contact Resistance: 50 mOhm
·Mechanical Life: 500,000 cycles
·Switch Rating: 3A/250VDC
What does all this mean? You're getting a tough switch that will last a long time in your instrument and look good doing it!
The switch is easy to install. If you have the slightest bit of skill with a soldering iron you can do it yourself. If you do not have that skill, you should have a guitar repair person do it. The mounting hole is barely larger than a standard volume or tone pot (10MM vs. 9MM) which means that if you decide to go back to your original setup, you don't have to buy a new pickguard or repair that hole in your wood.
This package comes with everything:
·(1) Tesi MIMMO 10mm Momentary Guitar Kill Switch
·(1) Tesi Quick-Connect wiring Bundle that includes:
·(1) 8" Black ground wire (already attached)
·(1) 8" White hot wire (already attached
·(1) 8" 9V Battery Harness with 330 Ohm resistor
·(1) On/Off Rocker Switch
·(1) Set of easy-to-follow wiring instructions
·(1) Spare 270 Ohm resistor for custom wiring jobs
When used with active pickups and/or a stereo output jack (not included) the Tesi MIMMO does not require the additional on/off rocker switch.
Each Tesi Guitar Kill Switch is guaranteed against defect for one year from the date of sale. Contact us for more details.
