EVERTUNE® CHEVALET MODÈLE F 6 CORDES CHROME

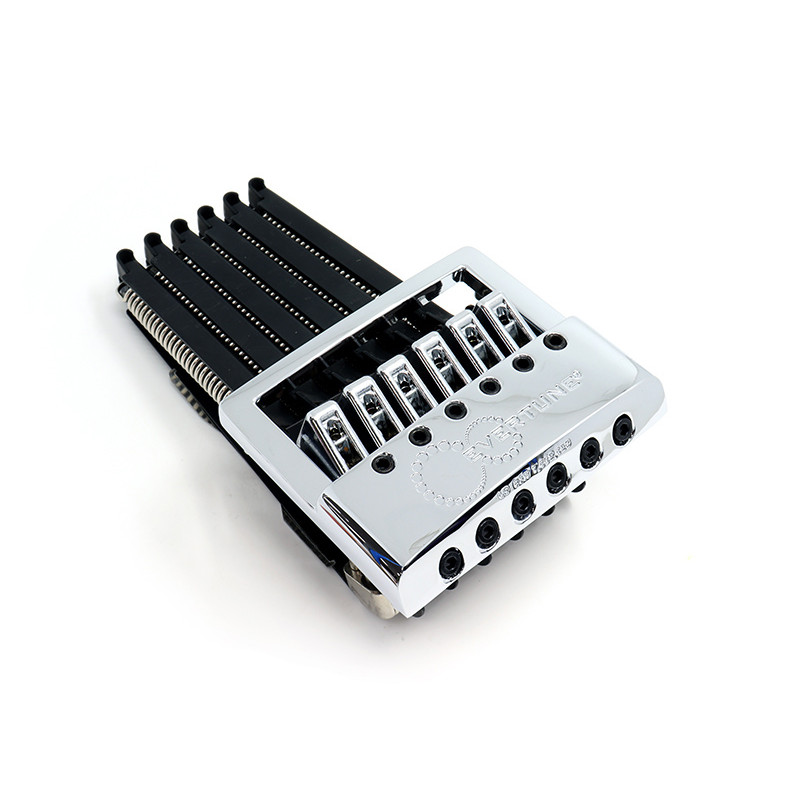

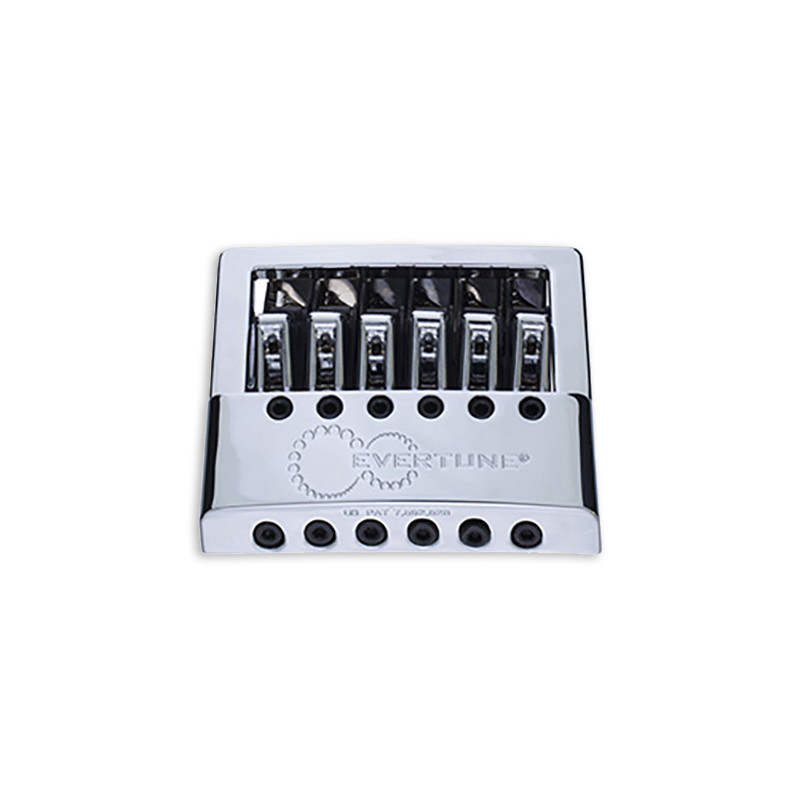

EVERTUNE® BRIDGE F MODEL 6 STRINGS CHROME

For Strat-style guitars. Ambidextrous.
Every new EverTune bridge comes with a service pack.

This includes an EverTune hex key (matched to the faceplate color), an extra set of action screws and a printed Owners Manual. If the installed set of action screws is 8mm then the service pack will have 10mm screws; if the installed set is 10mm then the service pack will have 8mm screws.

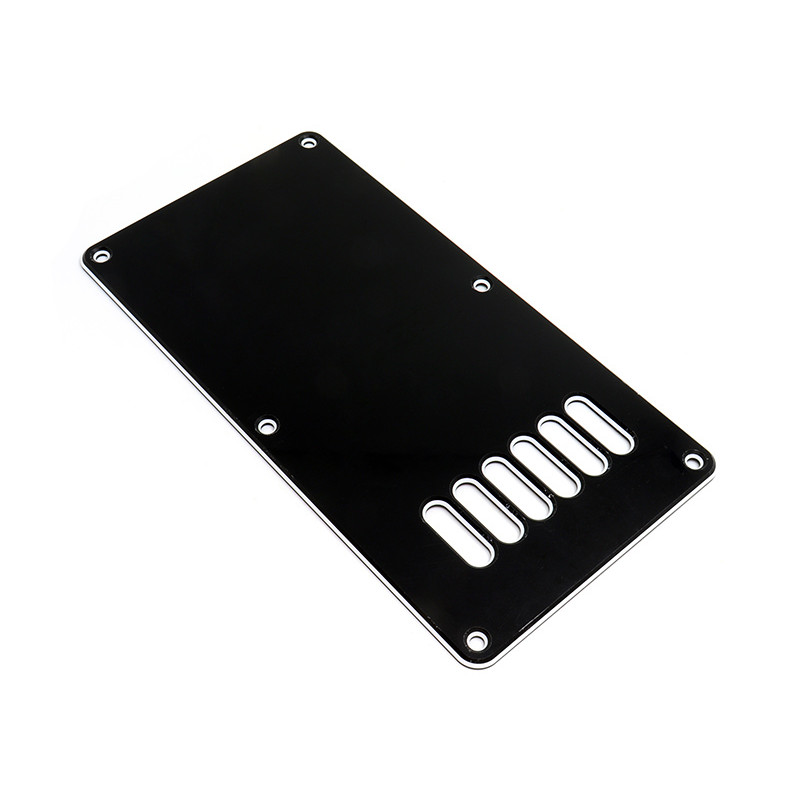

Every new bridge also comes with a comb and backplate.

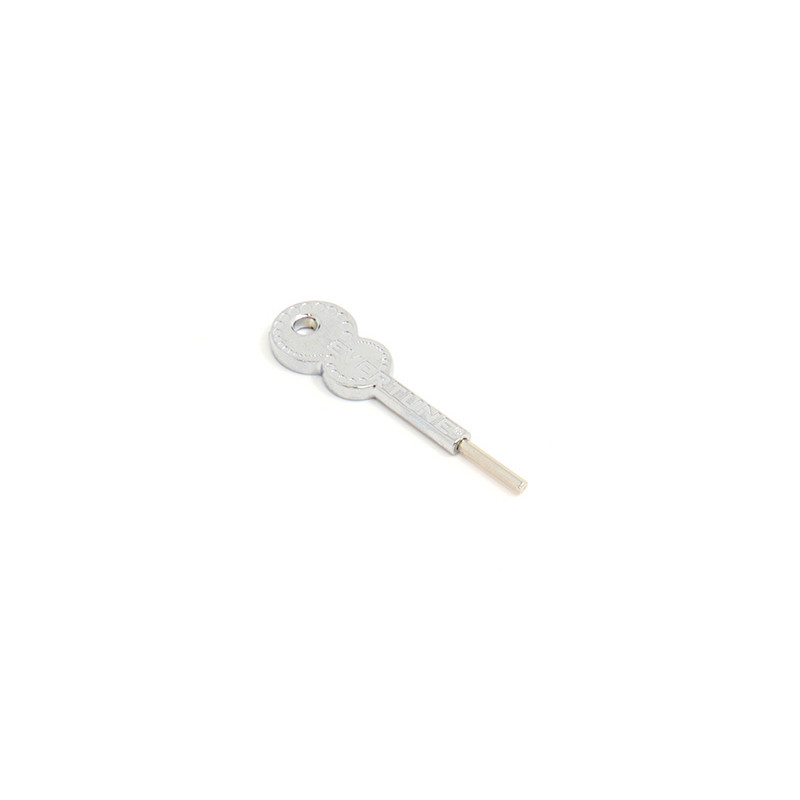

2.5mm EverTune Hex Key

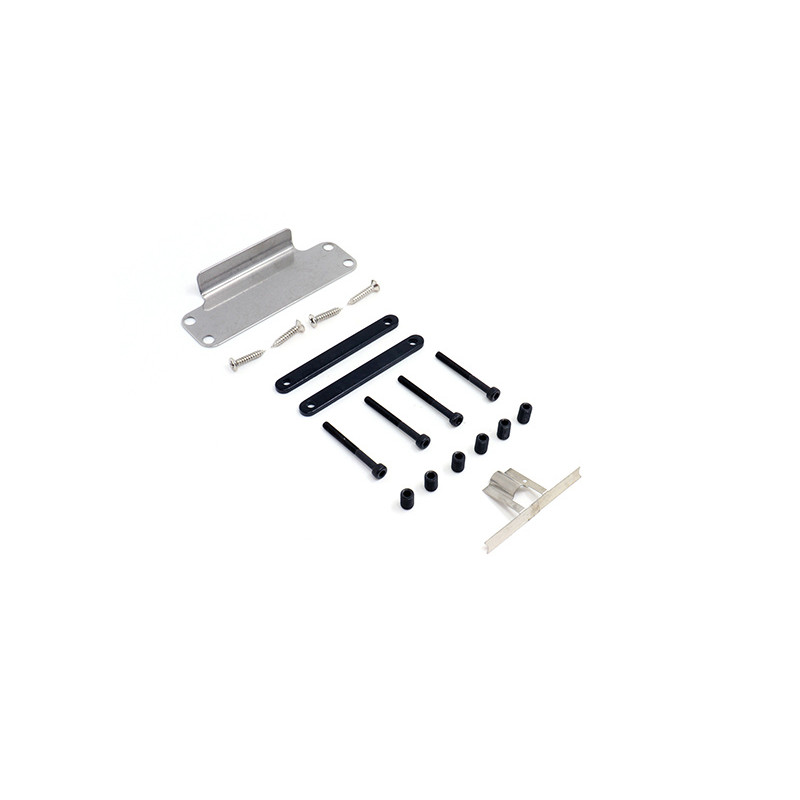

10mm and 8mm EverTune Bridge Action Screws
Installation notes
Minimum Body thickness for an F&T install is 1 3/4”.

Any guitar body thickness less than 1 3/4” will require the foot plate to be installed on top of a custom back plate riser to ensure proper positioning of the modules.
Zone 2 Variation Tolerance
Zone 2 can have some slight variation. If the pitch change is less than 7 cents from playing position to one half turn down into Zone 2 then the module's Zone 2 is within spec.

One half turn means loosening the tuning peg at the headstock by a turn of the wrist.
